Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Động Cơ Công Nghiệp 3 Pha | tần suất: | 50/60hz |
|---|---|---|---|
| RPM: | 800-1300 | Quyền lực: | 30-1750W |
| Vôn: | 110v-230v/380V | Vật liệu cách nhiệt: | Hạng B |
| địa chỉ IP: | IP20-44 | Sự bảo vệ: | Tự động ngắt nhiệt |
| Làm nổi bật: | 1hp 3 Phase Industrial Motor,1hp three phase motor 380v,1hp three phase motor 50hz |
||

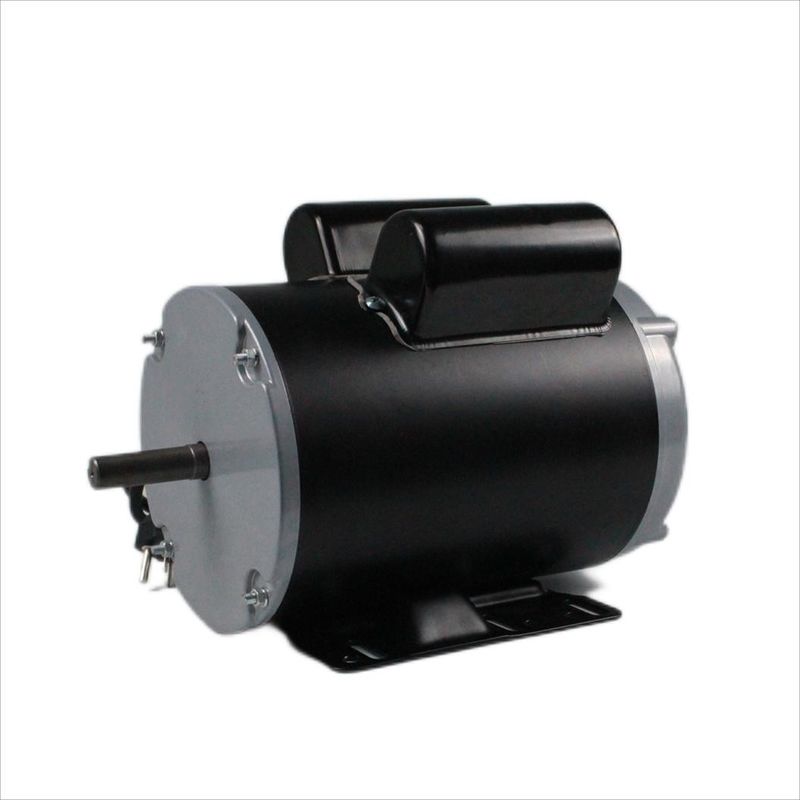

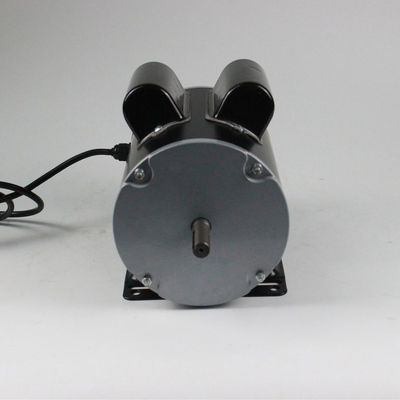

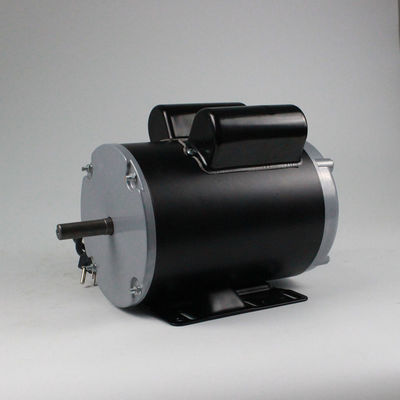

380V 50/60HZ 160mm Nema 1HP Farm Duty 3 Phase Industrial Motor
Introduction
Changzhou Hengsheng Electric Co., Ltd, located in Changzhou city, Jiangsu Province, has been specialized in the field of exporting high quality 3 phase industrial motor for animal husbandry, heat pump, farm, axial fans and other big fans for special applications.This 3 phase industrial motor is for big axial fans. We can also sell motors with fans as solution.
Quick Details
Output Power:370-2200W
Type: 3 phase industrial motor
Frequency:50/60hz
Phase:Single-phase/ 3 Phase
Certification:CCC, CE, ROHS
Protect Feature:Totally Enclosed
Rated Voltage:115/120 V/208-230V/380V
Insulation:Class B
Specification
| Model | Voltage | Hz | RPM | Output Power |
| YDK-370-8P | 380V | 50/60 | 710 | 370W 1/2HP |
| YSK-550-8P | 380V | 50/60 | 700 | 550W 3/4HP |
| YSK-750-8P | 380V | 50/60 | 710 | 550W 1HP |
| YSK-1500W-8P | 380V | 50/60 | 720 | 1500W 2HP |
Feature
Stable packed structure
Low noise
Less vibration
Cooper wire
Automatic thermal cutoff
More information of 3 Phase Industrial Motor
Types of three-phase industrial motors
First, the three-phase asynchronous motor installation of the common group power supply is different:
It can be divided into DC motor and AC motor, DC motor can be divided into DC motor, permanent magnet DC linear DC motor, brushless DC motor, AC motor can be divided into asynchronous motor, AC servo motor, AC torque motor, synchronous motor, AC linear motor.
Second, according to the starting and operation mode classification
According to the different starting and running modes, the industrial motor can be divided into capacitor starting single-phase asynchronous motor, capacitor running single-phase asynchronous industrial motor, capacitor starting single-phase asynchronous motor and split-phase single-phase asynchronous motor.
